Product Details

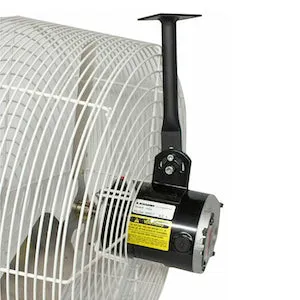

Schaefer Versa-Kool Circulation Fan 24in

Reduce heat stress and improve air quality with Schaefer??s uniquely designed circulation fans. Unrivaled in the market, these fans are engineered to produce greater air movement and superior cooling no matter the application. You don??t hear them. You don??t see them. You only feel them!

Also known as Horizontal Air Flow (HAF) fans, these fans move air in a coherent horizontal pattern creating a gentle ??racetrack?? air flow pattern needed in greenhouses to maximize heat distribution and humidity control by mixing the air, from ceiling to floor.


Features

  • Deep guard design for unmatched performance, low noise levels and safety without sacrificing airflow.
  • Matched high-quality motors and blades for maximum efficiency.
  • Powder coated steel guards for increased durability and corrosion resistance.
  • Hot dipped galvanized guards on VK12-GA and VK20-GA models for even greater rust protection.
  • Powder coated steel mounting bracket and power cord included.
  • Wide variety of mounting options available for flexible and easy installation.
  • Variable speed controls available.
  • Misting kits available for even greater cooling.
  • Made in the USA.

Specifications

Air Velocity (Min / Max)TBD / TBD
Blade ColorMetallic
CFM7860
DriveDirect
EnclosureTEAO
Frame Size48Z

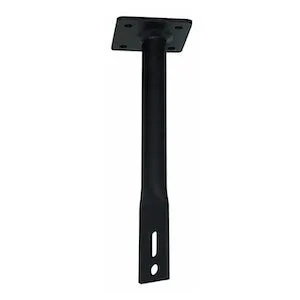

Mount IncludedVS24FMT
Phase1
Speeds1
VFD CompatibleNo
CMF/Watt16
Power CordIncluded / Not Hard Wired
Diameter24in
Frequency60Hz
Guard ColorWhite
Mount Type IncludedCeiling
Amps4.8A
Number of Wings3
Power1/2HP
Net Weight43.0lbs
SwitchNot Included
Voltage115/230
Maximum RPM1725
Air Velocity1200
Blade MaterialAluminum
CFM?Circulation StandardANSI/AMCA Standard 230-99
Product ColorWhite
Product Shipping Dimensions23" x 23" x 18"
Speed Control CompatibleYes
Able to Ship Small ParcelYes
CFM?Range1001-2500
Cord Length5ft
Fixed / PortableFixed
Guard MaterialPowder Coated Steel
OscillatingNo
Country of OriginUSA
Guard Spacing1/2 - 1 UL507
CFM/Watt (@0.10")TBD
CFM/Watt (@0.05")

TBD

Schaefer Versa-Kool Circulation Fan 24 in w/ Tapered Guards, Cord & Mount - 7860 CFM

$ 97.00
